Manufacturers of Coventry Chasers, Tangential Chasers and Thread Rolls

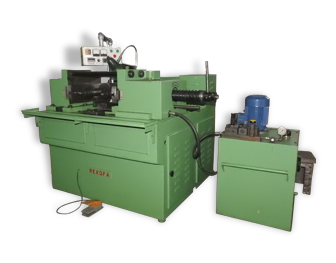

HYDRAULIC THREAD ROLLING MACHINES

Powerful constructions permits deep forming of thread, warms serrations khurls.

Rigidity & simplicity : Grade-1 caste hardened and duly scrapped slide also the easy adjustment of machines as well as tooling enables an unskilled laborer to operate machine.

Machine is very much suitable for mass production and best surface finishes.

HYDRAULIC THREAD ROLLING MACHINES


	Machines are also available as per your specific requirements. The Maximum values specified above can not be always acheved simultaneously. EXTRA ACCESSORIES : All kind of thread rollers, automatic loader for mass production and other special equipment on request. All the specifications given above liable to change without notice.

Specifications
Max. Pitch can be rolled	2.5	3	3.5	4	6
Max. Dia can be rolled infeed	25	25	40	50	75
Through Feed	12	16	25	30	36
Max Rolling Length infeed	80	80	125	150	180
Through Feed	indefinite	indefinite	indefinite	indefinite	indefinite
Max. Outer Dia. T Rolls	120	160	180	200	200
Spindle Dia (Bore Dia)	40	54	54	69.85	69.85
Max. Width T. Rolls	80	80	125	150	182
Maximum Rolling Force	8 tons	8 tons	12 tons	15 tons	24 tons
For Roll Spindles	3 HP 1440rpm	3 HP 1440rpm	5 HP 1440rpm	7.5 HP 1440rpm	10HP 1440rpm
For Hyd. Pump	3 HP 1440rpm	3 HP 1440rpm	3 HP 1440rpm	5 HP 1440rpm	5 HP 1440rpm
For Coolant Pump	0.25 HP 3000rpm	0.25 HP 3000rpm	0.25 HP 3000rpm	0.25 HP 3000rpm	0.25 HP 3000rpm

THREAD ROLLING

These thread rolls are used on thread rolling machine. These rolls comes in set of two & three pieces manufactured from D2,D3 & M2 Material to suit any type of machine. For any specification of thread such as ISO Metric Din Whiteworhth America, Trapozodical, Acme etc.
